8000MHz to 12000MHz Low Noise Amplifier 14dB Gain
VLAN-8000-12000-14

8000MHz to 12000MHz Low Noise Amplifier 14dB Gain

Frequency Range : 8-12GHz
Gain : 14 dB
P-1dB : 20 dBm
Noise Figure : 1.9 dB

Product Description


VLAN-8000-12000-14 8000MHz to 12000MHz Low Noise Amplifier 14dB Gain

The VLAN-8000-12000-14 is a high-performance X-band Low Noise Amplifier delivering 14dB typical gain across the 8-12GHz frequency range. This amplifier combines excellent gain flatness (±0.5dB max) with an ultra-low 1.9dB noise figure, making it particularly suitable for radar systems, satellite communications, and high-frequency test equipment.

Engineered for demanding RF applications, the VLAN-8000-12000-14 features a robust 20dBm P1dB compression point and operates from a single +5V supply, providing reliable performance in both commercial and military environments.

Electrical Specifications (TA=+25℃)

  • Model Number: VLAN-8000-12000-14
  • Frequency Range: 8000 to 12000 MHz (8-12GHz)
  • Gain: 13 (min), 14 (typ) dB
  • Gain Flatness: ±0.5 dB (max)
  • P-1dB Compression Point: 19 (min), 20 (typ) dBm
  • Input VSWR: 1.8:1 (max)
  • Output VSWR: 1.8:1 (max)
  • Noise Figure: 1.9 (typ), 2.2 (max) dB
  • DC Power Supply: +5V ±5%
  • Current Consumption: 65mA (typical)

Absolute Maximum Ratings

  • Maximum Supply Voltage (VD): +6V
  • Maximum RF Input Power: +17dBm
  • Operating Temperature Range: -45°C to +85°C
  • Storage Temperature Range: -55°C to +125°C

Mechanical Specifications

  • Product Dimensions: 15.0mm × 13.0mm × 7.0mm
  • RF Input Connector: SMA female (SMA-K)
  • RF Output Connector: SMA female (SMA-K)
  • DC Power Connector: Φ0.8mm gold-plated pin
  • Ground Connection: Φ0.8mm gold-plated pin
  • Mounting: Surface mount or chassis mount options available

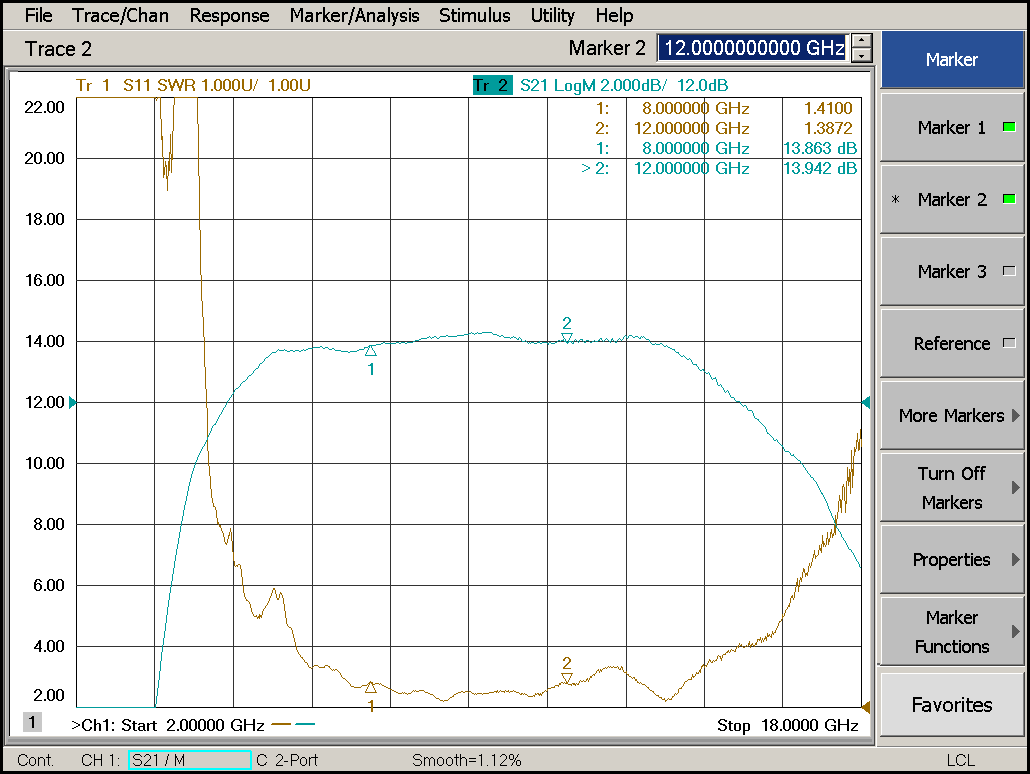

Gain and standing wave curve

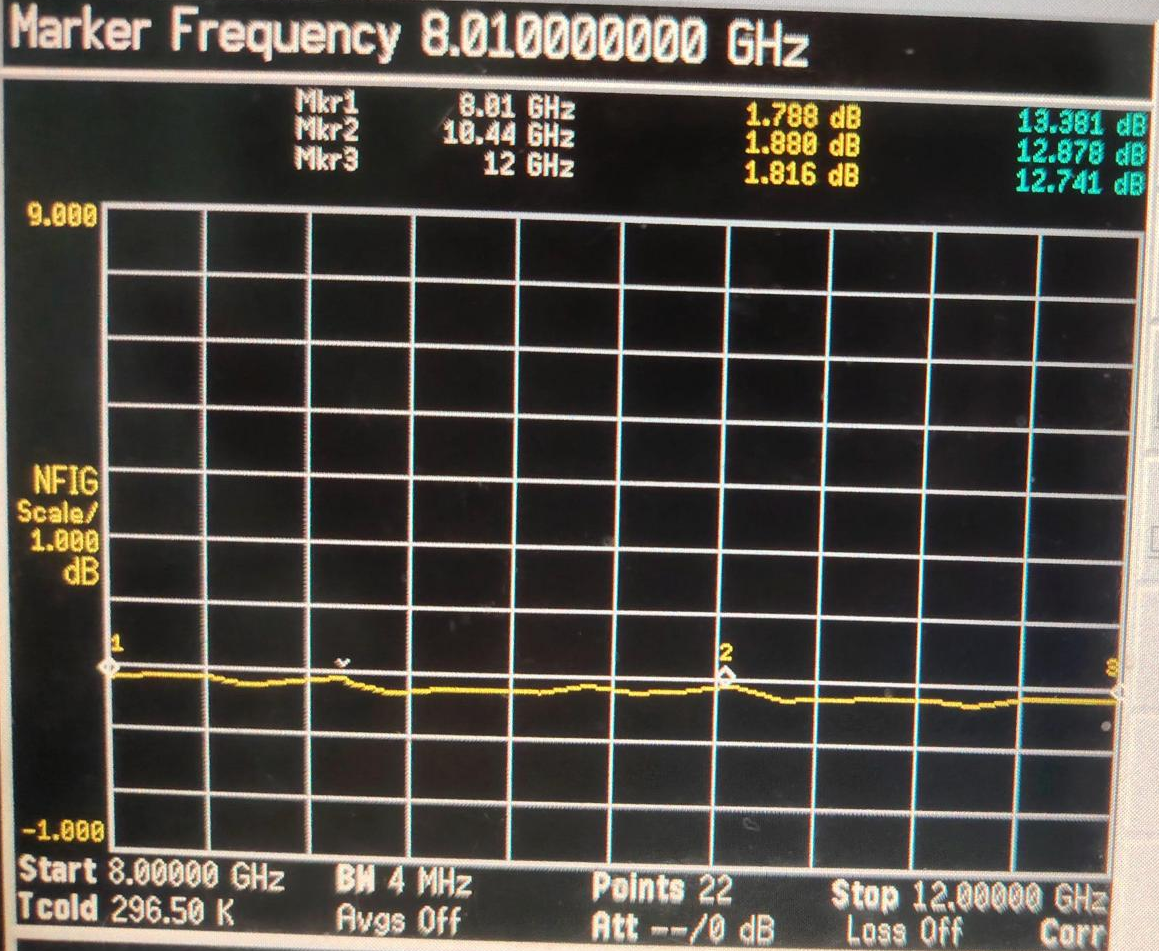

Noise figure curve
