The VLAN-2000-8000-14 is a high-performance broadband low noise amplifier designed for critical RF systems requiring reliable signal amplification across the 2-8GHz spectrum. This compact module delivers 14dB typical gain with exceptional ±0.5dB flatness, making it particularly suitable for radar warning receivers, satellite communication ground stations, and electronic warfare systems where signal integrity is paramount.
With its low 2.3dB noise figure and robust 16.5dBm P1dB compression point, the amplifier excels in demanding test and measurement applications, including spectrum monitoring and microwave radio systems. The 50Ω matched design ensures seamless integration with standard RF test equipment, while the military-grade temperature range (-45°C to +85°C) guarantees reliable operation in harsh environmental conditions.
The VLAN-2000-8000-16's compact 15×13×7mm surface-mount package with SMA-K connectors provides a ruggedized solution for space-constrained airborne and mobile applications. Its low 60mA current consumption at 5V DC makes it ideal for portable field equipment and power-sensitive deployments.
Electrical Specifications (TA=+25℃)
- Model: VLAN-2000-8000-14
- Frequency Range: 2 to 8 GHz
- Gain: 13.5 (min), 14 (typ) dB
- Gain Flatness: ±0.5dB (typical)
- P-1dB Compression Point: 15.5 (min), 16.5 (typ) dBm
- Input/Output VSWR: 1.8:1 (max)
- Impedance: 50 Ω
- Noise Figure: 2.3 (typ), 3 (max) dB
- Operating DC Voltage: 5 V
- Operating DC Current: 60 mA
Absolute Maximum Ratings
Mechanical Specifications
- Dimensions: 15 × 13 × 7 mm
- RF Input Connector: SMA-K (Female)
- RF Output Connector: SMA-K (Female)
- DC Interface Connector: Φ0.8 Pin
- GND Interface Connector: Φ0.8 Pin

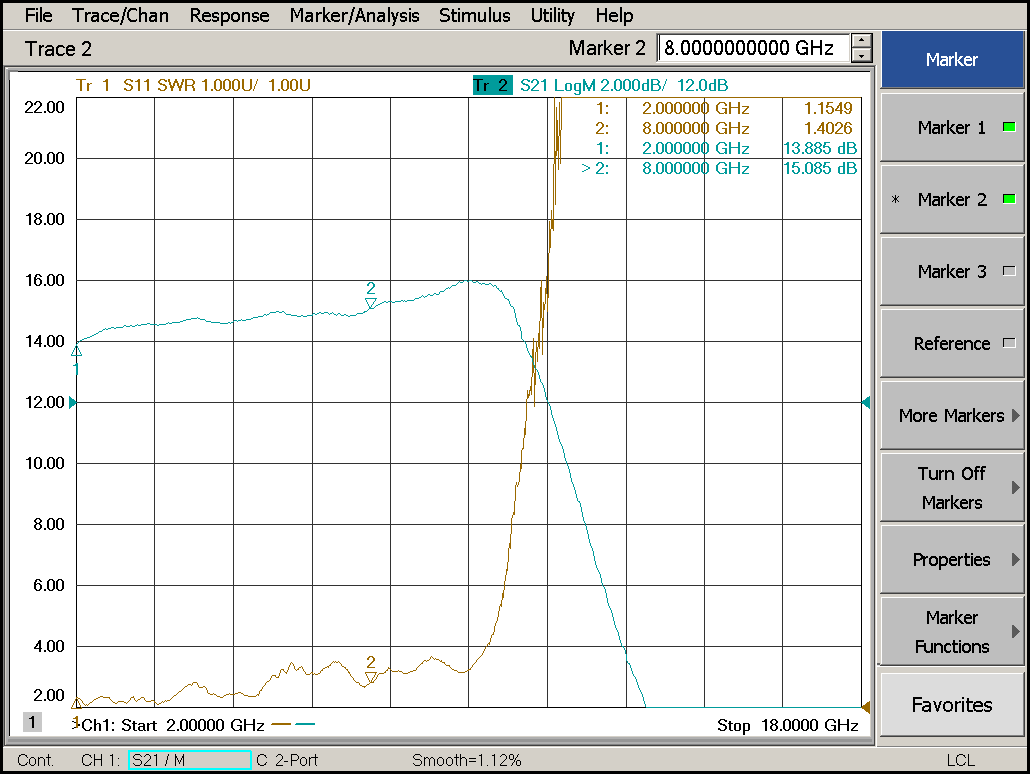

Gain and standing wave curve

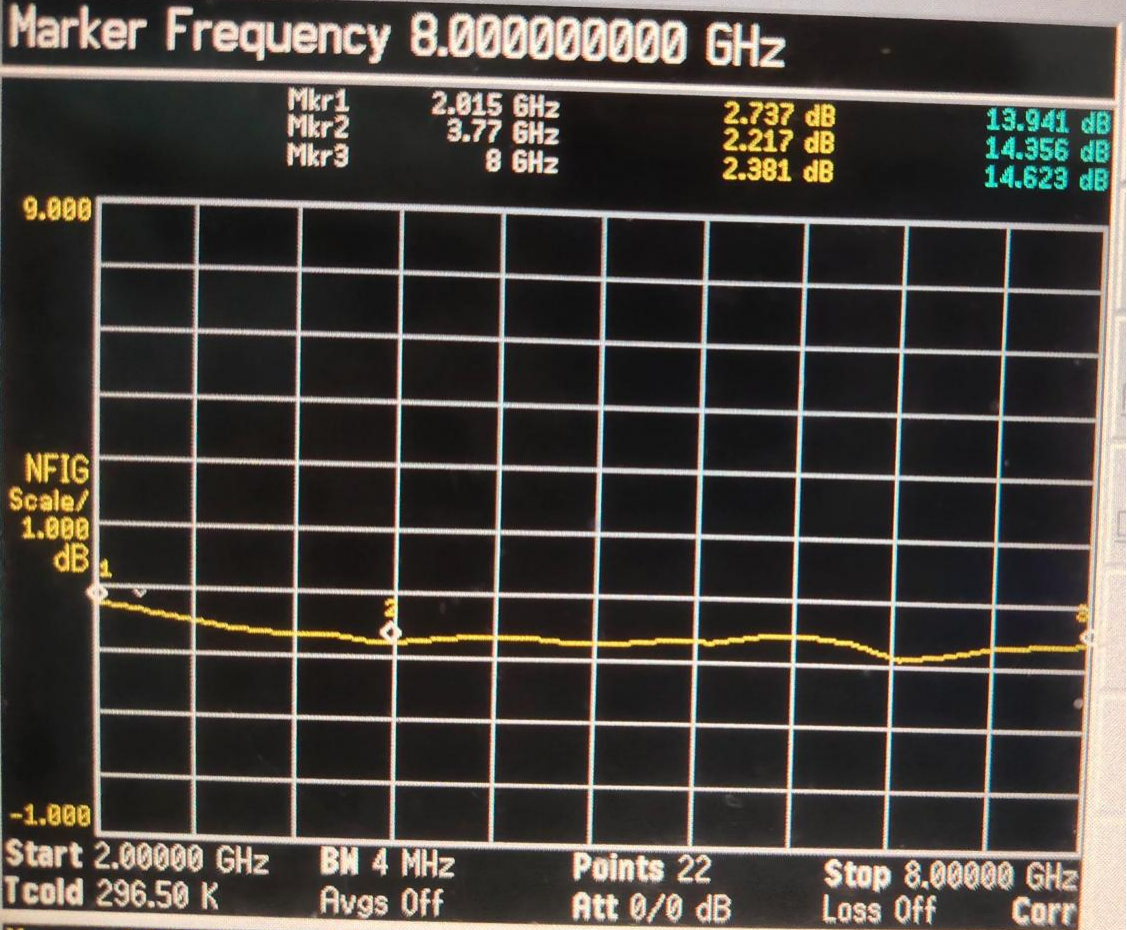

Noise figure curve
