2000MHz to 6000MHz Low Noise Amplifier 26dB Gain
VLAN-2000-6000-26

2000MHz to 6000MHz Low Noise Amplifier 26dB Gain

Frequency Range : 2-6 GHz
Gain : 26.5 dB
P-1dB : 9 dBm
Noise Figure : 0.75 dB

Product Description


VLAN-2000-6000-26 2GHz to 6GHz Low Noise Amplifier 26.5dB Gain

The VLAN-2000-6000-26 is a broadband low noise amplifier covering the 2-6GHz frequency range with an ultra-low 0.75dB noise figure. This high-performance amplifier delivers 26.5dB of stable gain with excellent ±1dB flatness, making it ideal for C-band applications including radar systems, satellite communications, and wireless infrastructure.

Featuring a low 1.4:1 VSWR and requiring only 30mA at 5V, the VLAN-2000-6000-26 provides superior signal amplification while maintaining excellent power efficiency for both commercial and military applications.

Electrical Specifications (TA=+25℃)

  • Model Number: VLAN-2000-6000-26
  • Frequency Range: 2 to 6 GHz (C-band)
  • Gain: 26.5 dB (typical)
  • Gain Flatness: ±1 dB (typical)
  • P-1dB Compression Point: 9 dBm (typical)
  • Input VSWR: 1.4:1 (typical)
  • Output VSWR: 1.4:1 (typical)
  • Noise Figure: 0.75 dB (typical)
  • DC Power Supply: +5V ±5%
  • Current Consumption: 30mA (typical)

Absolute Maximum Ratings

  • Maximum Supply Voltage (VD): +6V
  • Maximum RF Input Power: +17dBm
  • Operating Temperature Range: -45°C to +85°C
  • Storage Temperature Range: -55°C to +125°C

Mechanical Specifications

  • Product Dimensions: 15.0mm × 13.0mm × 7.0mm
  • RF Input Connector: SMA female (SMA-K)
  • RF Output Connector: SMA female (SMA-K)
  • DC Power Connector: Φ0.8mm pin
  • Ground Connection: Φ0.8mm pin
  • Mounting: Surface mount or chassis mount options available

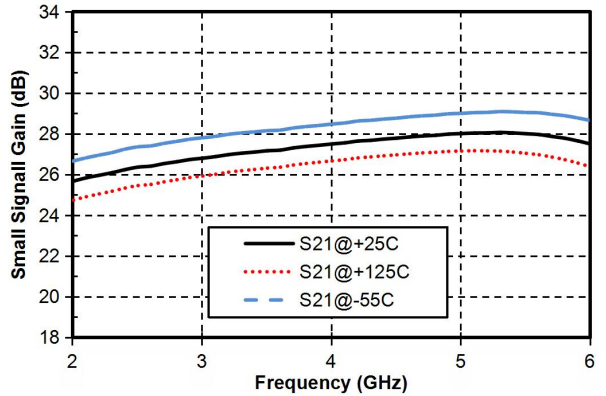

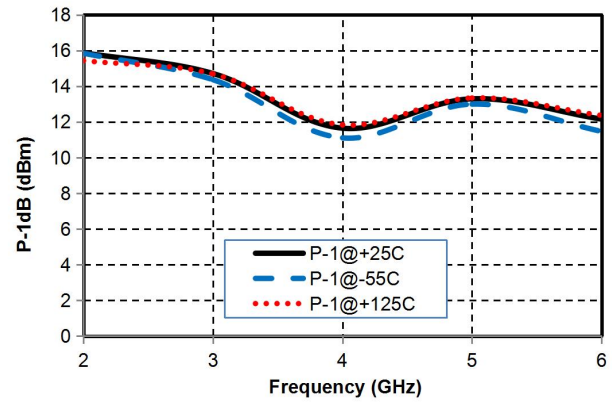

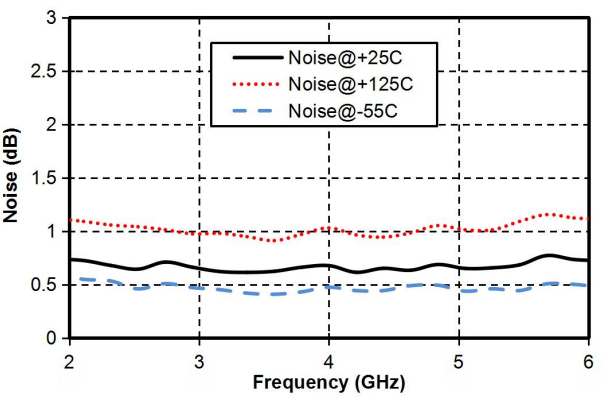

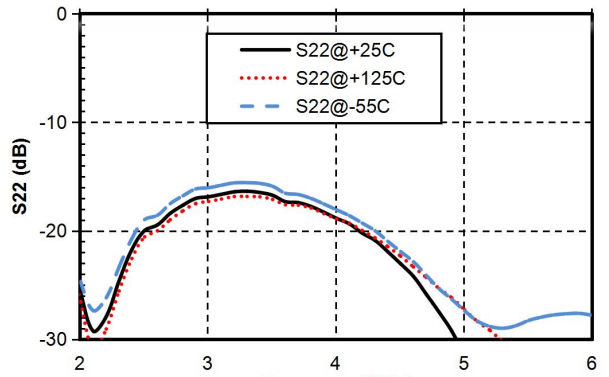

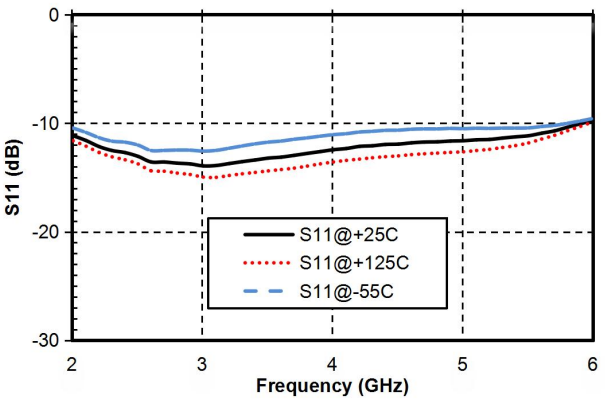

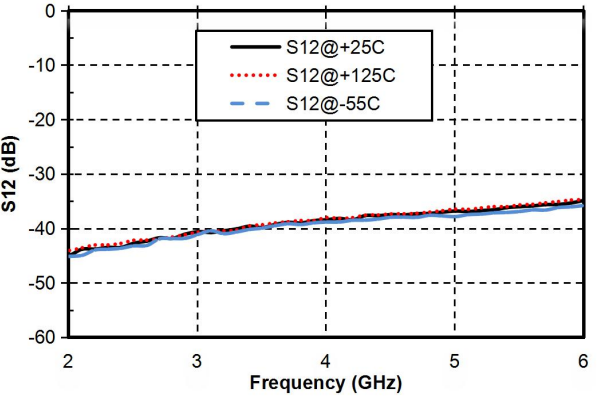

Typical Performance Characteristics Curves
