12000MHz to 18000MHz Low Noise Amplifier 16dB Gain
VLAN-12000-18000-16

12000MHz to 18000MHz Low Noise Amplifier 16dB Gain

Frequency Range : 12-18 GHz
Gain : 16 dB
P-1dB : 16 dBm
Noise Figure : 2.0 dB

Product Description


VLAN-12000-18000-16 12GHz to 18GHz Low Noise Amplifier 16dB Gain

The VLAN-12000-18000-16 is a high-performance Ku-band Low Noise Amplifier delivering 16dB typical gain across the 12-18GHz frequency range. This amplifier features an excellent 2.0dB noise figure and ±0.5dB gain flatness, making it ideal for satellite communications, radar systems, and high-frequency test applications.

With its robust 16dBm P1dB compression point and low 1.5:1 typical VSWR, the VLAN-12000-18000-16 provides reliable performance for demanding RF systems operating in the Ku-band spectrum.

Electrical Specifications (TA=+25℃)

  • Model Number: VLAN-12000-18000-16
  • Frequency Range: 12 to 18 GHz (Ku-band)
  • Gain: 15.5 (min), 16 (typ) dB
  • Gain Flatness: ±0.5 dB (max)
  • P-1dB Compression Point: 14.5 (min), 16 (typ) dBm
  • Input VSWR: 1.5 (typ), 1.8 (max)
  • Output VSWR: 1.5 (typ), 1.8 (max)
  • Noise Figure: 2.0 (typ), 2.5 (max) dB
  • DC Power Supply: +5V ±5%
  • Current Consumption: 68mA (typical)

Absolute Maximum Ratings

  • Maximum Supply Voltage (VD): +6V
  • Maximum RF Input Power: +17dBm
  • Operating Temperature Range: -45°C to +85°C
  • Storage Temperature Range: -55°C to +125°C

Mechanical Specifications

  • Product Dimensions: 15.0mm × 13.0mm × 7.0mm
  • RF Input Connector: SMA female (SMA-K)
  • RF Output Connector: SMA female (SMA-K)
  • DC Power Connector: Φ0.8mm gold-plated pin
  • Ground Connection: Φ0.8mm gold-plated pin
  • Mounting: Surface mount or chassis mount options available

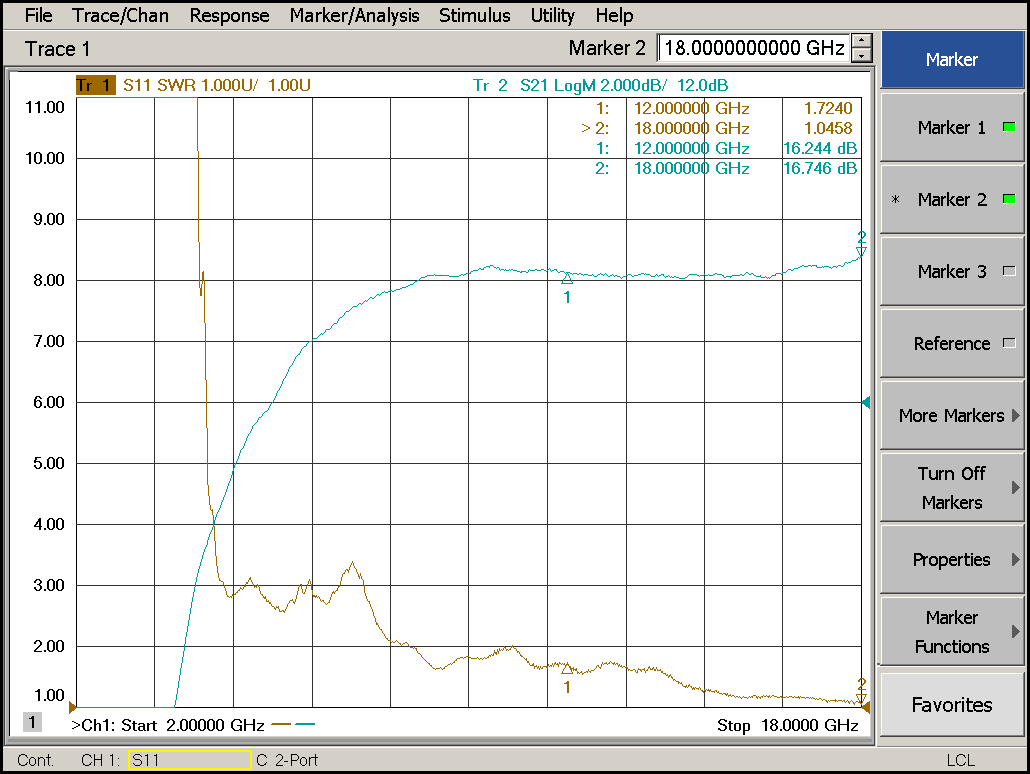

Gain and standing wave curve

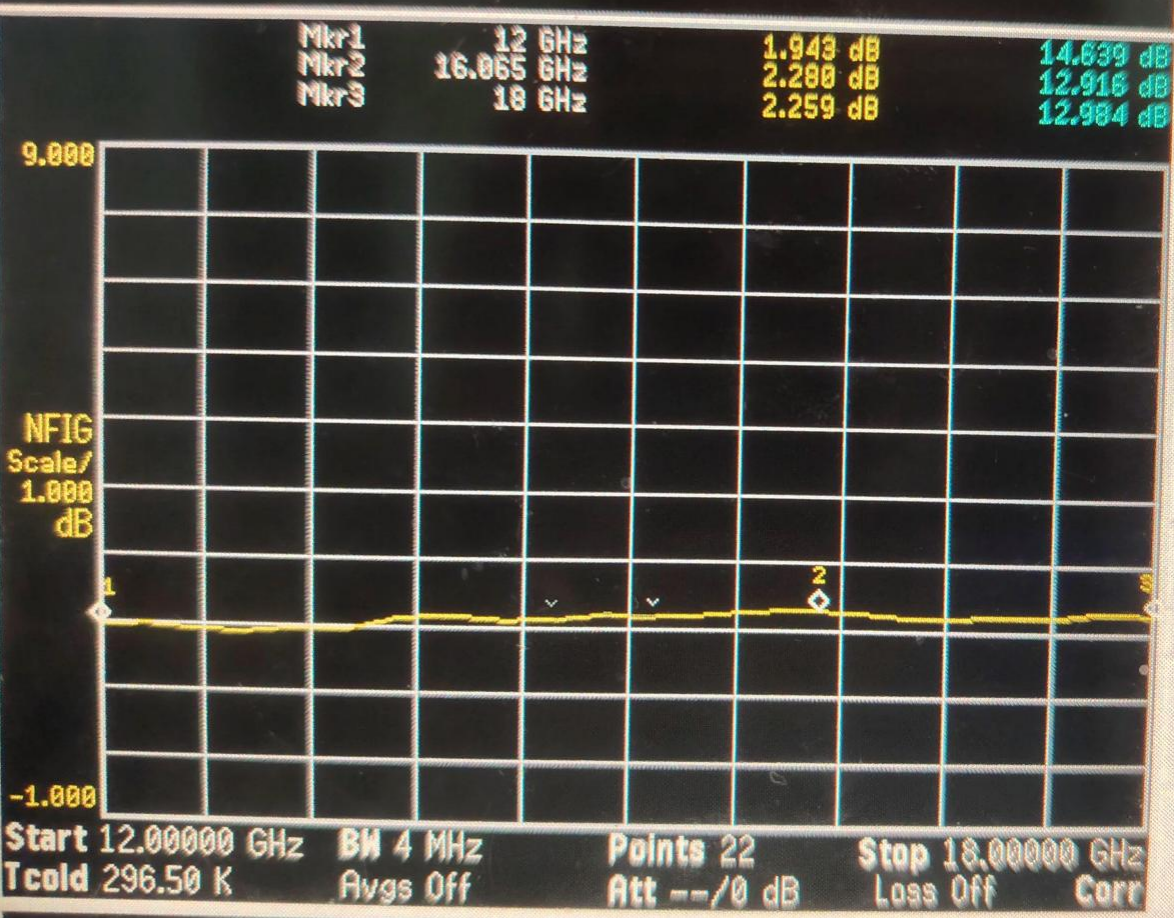

Noise figure curve
