1000MHz to 18000MHz Low Noise Amplifier 15dB Gain
VLAN-1000-18000-15

1000MHz to 18000MHz Low Noise Amplifier 15dB Gain

Frequency Range : 1-18GHz
Gain : 15±0.5dB
P-1dB : 15dBm
Noise Figure : 2dB

Product Description


VLAN-1000-18000-15 1GHz to 18GHz Low Noise Amplifier 15dB Gain

The VLAN-1000-18000-15 is an ultra-wideband Low Noise Amplifier delivering 15dB typical gain across an exceptional 1-18GHz frequency range. This high-performance amplifier features ±0.5dB gain flatness and a low 2dB noise figure, making it ideal for multi-band applications including spectrum monitoring, electronic warfare, and test equipment requiring wide instantaneous bandwidth.

With its 16dBm P1dB compression point and efficient 35mA current consumption, the VLAN-1000-18000-15 provides reliable amplification for systems operating from L-band through Ku-band frequencies while maintaining excellent power efficiency.

Electrical Specifications (TA=+25℃)

  • Model Number: VLAN-1000-18000-15
  • Frequency Range: 1 to 18 GHz (L-band to Ku-band)
  • Gain: 14 (min), 15 (typ) dB
  • Gain Flatness: ±0.5 (typ), ±1 (max) dB
  • P-1dB Compression Point: 15 (min), 16 (typ) dBm
  • Input VSWR: 2:1 (max)
  • Output VSWR: 2:1 (max)
  • Noise Figure: 2 dB (typical)
  • DC Power Supply: +5V ±5%
  • Current Consumption: 35mA (typical)

Absolute Maximum Ratings

  • Maximum Supply Voltage (VD): +6V
  • Maximum RF Input Power: +17dBm
  • Operating Temperature Range: -40°C to +85°C
  • Storage Temperature Range: -55°C to +125°C

Mechanical Specifications

  • Product Dimensions: 15.0mm × 13.0mm × 7.0mm
  • RF Input Connector: SMA male (SMA-K)
  • RF Output Connector: SMA female (SMA-K)
  • DC Power Connector: Φ0.8mm pin
  • Ground Connection: Gold-plated post
  • Mounting: Surface mount or chassis mount options available

Gain and standing wave curve

VLAN-1000-18000-15 Gain and standing wave curve

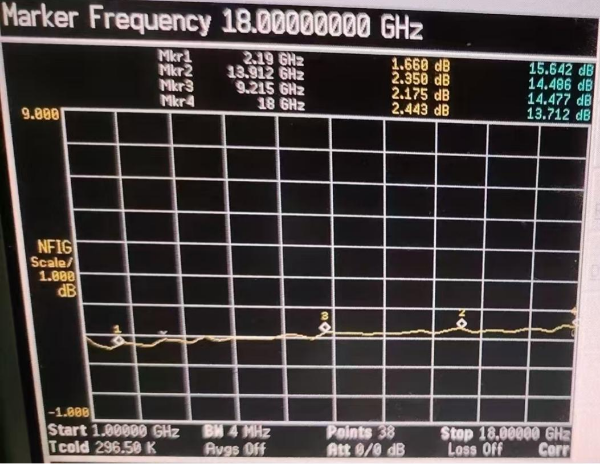

Noise figure curve

VLAN-1000-18000-15 Noise coefficient curve
